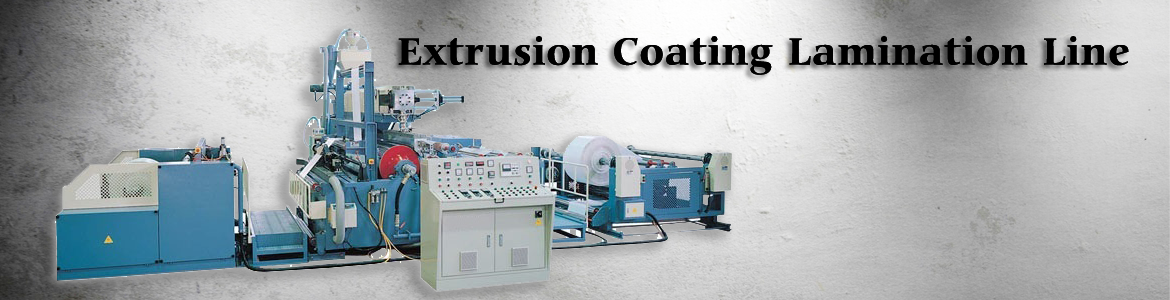

High-performance Extrusion Coating & Lamination Lines engineered for precise polymer coating, strong substrate bonding, excellent surface finish and reliable high-speed production for flexible packaging and industrial applications.
Heaven Extrusions Pvt. Ltd. is a leading manufacturer and exporter of plastic extrusion machinery, delivering advanced Extrusion Coating and Lamination Lines designed for high-quality coating, laminating and composite film production for flexible packaging and industrial applications.
Our Extrusion Coating & Lamination Lines are engineered with precision extrusion systems, advanced T-die technology, reliable cooling and treatment systems, accurate web handling and high-performance winding solutions to provide consistent coating thickness, strong lamination bonding, excellent surface quality and reliable continuous production.

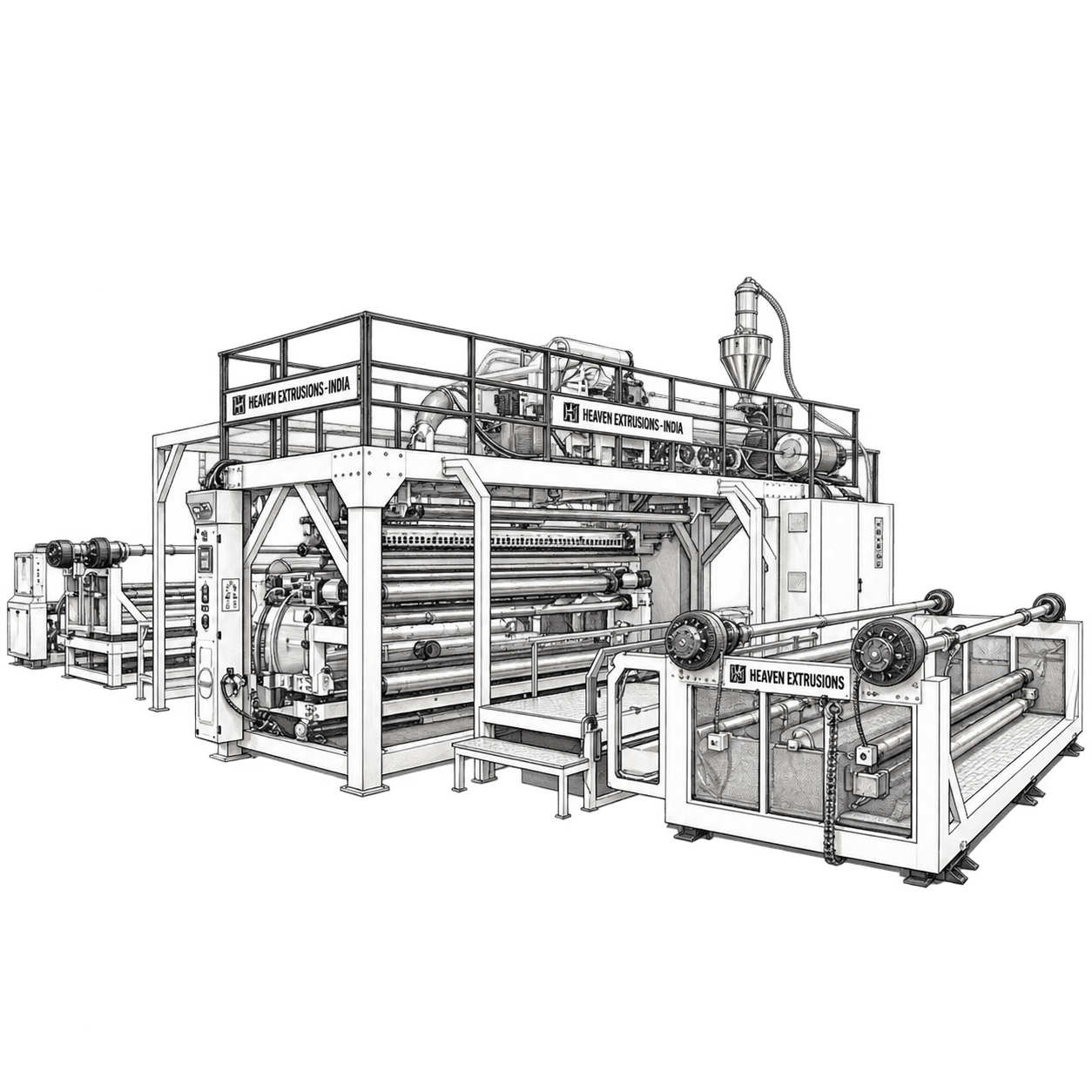

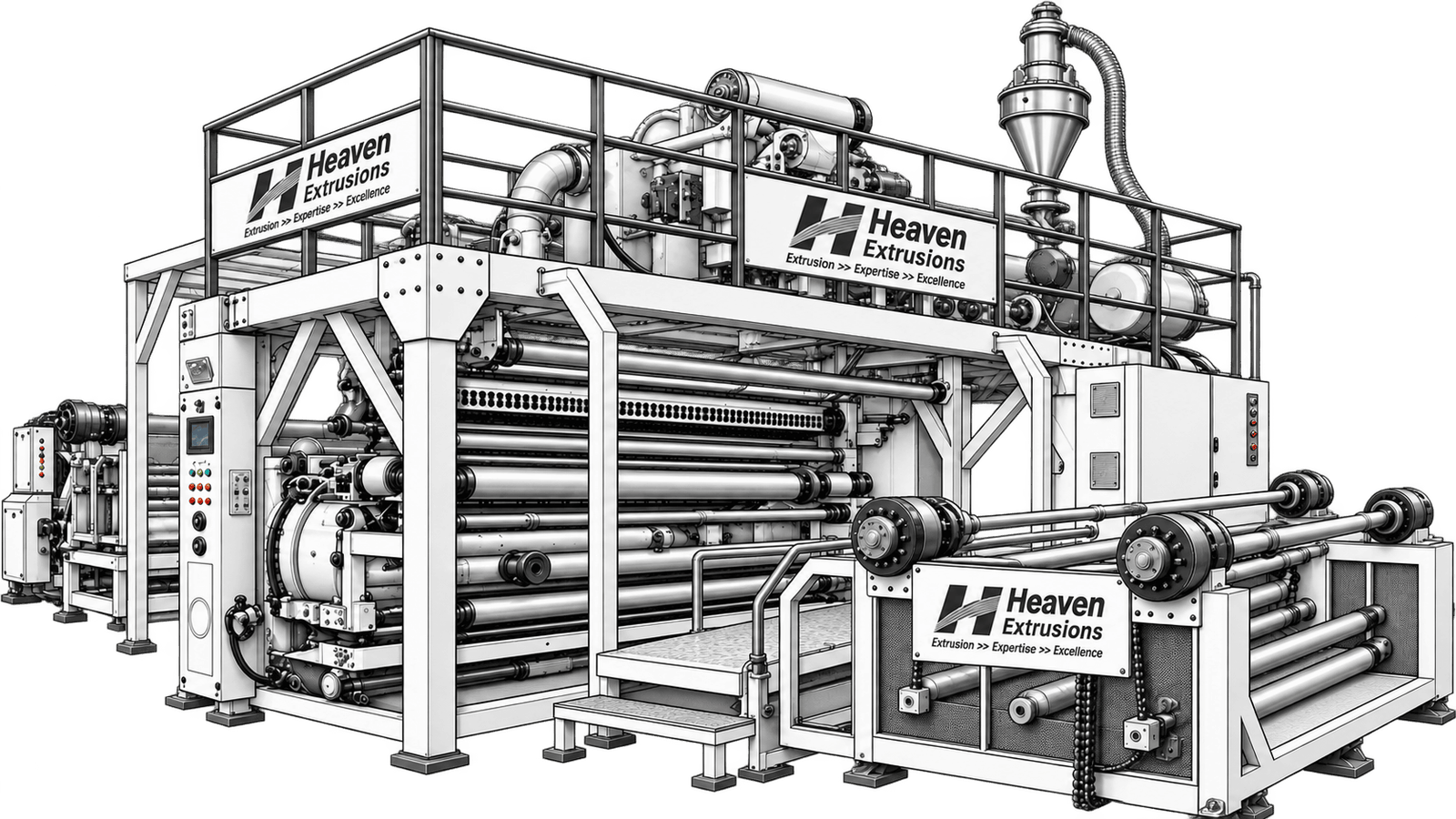

The Heaven Extrusions Extrusion Coating & Lamination Line is engineered for high-quality coating and lamination of flexible substrates used in packaging, industrial, agricultural and specialized applications.
Designed with precision extrusion systems, advanced T-die technology, accurate coating control, reliable cooling and web handling systems, the line delivers uniform coating thickness, excellent adhesion, smooth surface finish and stable high-speed production.
The system can be configured for extrusion coating, extrusion lamination and multi-layer composite structures using suitable substrates such as woven fabric, paper, film, aluminium foil and other flexible materials.
High-output extrusion systems with precision screw and barrel designs provide consistent melt quality, stable processing and reliable coating output.
Precision T-die technology provides controlled and uniform coating thickness across the web for consistent product quality and surface performance.
Controlled extrusion lamination systems provide strong bonding between different substrates for high-performance flexible and composite materials.
PLC and HMI-based control systems help monitor important production parameters and maintain stable coating thickness and processing conditions.
Advanced unwinding, web guiding, tension control and winding systems provide smooth substrate handling and stable roll formation.
Advanced PLC and HMI control provides real-time monitoring, easy operation and precise control of critical coating and lamination parameters.
Heaven Extrusions Extrusion Coating & Lamination Lines are engineered to produce high-quality coated and laminated materials for flexible packaging, woven sacks, paper packaging, industrial fabrics, aluminium foil and other specialized applications.
Extrusion coating and lamination solutions for producing high-quality flexible packaging materials with improved barrier properties, sealing performance, surface protection and mechanical strength.
Extrusion coating systems designed for woven polypropylene and HDPE fabrics used in sacks, industrial packaging, tarpaulins and protective fabric applications requiring strong coating adhesion and surface protection.
Extrusion coating and lamination solutions for paper and paperboard substrates requiring improved moisture resistance, heat sealing, barrier performance and enhanced surface protection.
Coating and lamination systems for industrial fabrics requiring enhanced durability, moisture resistance, surface protection and improved mechanical performance in demanding operating environments.
Extrusion coating solutions for producing weather-resistant coated fabrics used in tarpaulins, industrial covers, temporary shelters, monsoon protection and outdoor applications.
Lamination solutions for combining aluminium foil with films, paper and other substrates to produce composite structures with enhanced barrier, moisture protection and product preservation characteristics.
Coated and laminated materials suitable for fertilizer bags, chemical packaging, food and grain sacks, animal feed bags and other industrial packaging applications requiring strength and moisture resistance.
Heaven Extrusions Coating Lamination Plants are engineered for reliable, high-speed production with multiple configurations covering different die widths, coating thickness ranges, production capacities and processing requirements.
| SR No. | Model | Screw Size (MM) | Die Width (MM) | Coating Thickness Range (MICRON) | Max. Line Speed (M/MIN) | Max. Production Capacity (KG/HR) | Total Connected Load (KW) | Main Drive (HP) | Polymer To Be Processed | Overall Dimension L × W × H |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | FETL/1200 COATING LAMINATION PLANT | 70 | 1200 | 10 TO 75 | 120 | 120 | 62 | 25 | LDPE / PP | 30 × 15 × 15 |
| 2 | FETL/1650 COATING LAMINATION PLANT | 75 | 1650 | 10 TO 75 | 120 | 150 | 78 | 30 | LDPE / PP | 40 × 16 × 15 |
| 3 | FETL/2200 COATING LAMINATION PLANT | 80 | 2200 | 10 TO 75 | 100 | 180 | 86 | 40 | LDPE / PP | 40 × 20 × 15 |
| 4 | FETL/2600 COATING LAMINATION PLANT | 90 | 2600 | 10 TO 75 | 80 | 200 | 98 | 50 | LDPE / PP | 40 × 20 × 15 |
| 5 | FETL/3250 COATING LAMINATION PLANT | 90 | 3250 | 10 TO 75 | 80 | 220 | 105 | 50 | LDPE / PP | 40 × 25 × 15 |
| 6 | FETL/3860 COATING LAMINATION PLANT | 75 × 75 | 3860 | 10 TO 75 | 60 | 250 | 135 | 30 × 30 | LDPE / PP | 40 × 40 × 15 |
| 7 | FETL/5300 COATING LAMINATION PLANT | 90 × 90 | 5300 | 10 TO 75 | 60 | 350 | 145 | 40 × 40 | LDPE / PP | 40 × 40 × 15 |
| SR No. | Plant Model | Screw Size (MM) | Die Width (MM) | Coating Thickness Range (MICRON) | Max. Line Speed (M/MIN) | Max. Production Capacity (KG/HR) | Total Connected Load (KW) | Main Drive (HP) | Polymer To Be Processed | Overall Dimension L × W × H |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | FETDL/900 TWIN DIE SYSTEM | 70 × 2 | 900 × 2 | 20 TO 75 | 120 | 100 TO 120 | 85 | 40 | LDPE / PP | 24 × 35 × 12 |
| 2 | FETDL/1000 TWIN DIE SYSTEM | 80 × 2 | 900 × 2 | 20 TO 75 | 150 | 140 TO 180 | 95 | 50 | LDPE / PP | 24 × 35 × 12 |
Heaven Extrusions offers multiple coating lamination plant configurations with different screw sizes, die widths, line speeds and production capacities to meet specific manufacturing requirements.
The coating lamination systems are designed for processing LDPE and PP polymers while maintaining consistent coating thickness, reliable production performance and efficient high-speed operation.
Twin Die System Coating Lamination Plants provide dual-die configurations for demanding production applications requiring higher output and advanced coating capabilities.
Tell our technical team about your extrusion coating and lamination requirements, substrate type, required coating width, coating thickness, production speed, material specifications and project requirements. We will help you identify the suitable Extrusion Coating & Lamination Line configuration.
